This page contains details of all available IdM data structures. Use Ctrl+F to search for the name of the particular data structure you’re looking for.

CaptureResponse

Field Name	Type	Description
resultStatus	EnumResultStatus	NA \| INSUFFICIENTCRITERIA \| NONE \| SINGLE \| MULTIPLE \| PICKLIST \| VERIFY
resultStatusDetail	String
recordsReturned	int	Number individual of records returned e.g. number of addresses
moreData	boolean	More data on the server
totalRecordCount	int	Total records from the query
totalPages	int	Pagination - Total pages
matchScore	matchScoreType	Integer value from 1 to 100. Relevant for freeformat address searches
matchLevel	EnumMatchLevel	NA \| INDIVIDUAL \| ORGANISATION \| PREMISE \| STREET \| LOCALITY \| ADMINISTRATIVEAREA \| POSTCODE
outputStatus	EnumOutputStatus	VERIFIED \| CORRECTED \| PARSED \| NOTMATCHED
fieldStatus	String	String indicating the statuses of the changed fields in a formatted address search
responseCount	int	Number of groups of responses returned
response	CaptureResponseData	Response data (returned address)

CaptureResponseData

Field Name	Type	Description
input	String
address	List of IdmDataAddress	Addresses in the response
relatedData	List of IdmDataArrayAdditionalData	optional, unbounded list
groupedRelatedData	List of IdmDataAdditionalDataGroup	optional, unbounded list

DataLicenceInvoice

Field Name	Type	Description
invoiceGuid	String	GUID for the invoice
billingInformationGuid	String	GUID for this billing information
dataLicenceDescription	String	(not used)
billingPoints	Integer	Number of billing points
creditsUsed	Integer	Credits used for a search request
dataSetInvoices	DataSetInvoice	List of invoices for the data sets. Data set invoicing is separated from the service invoicing. Charging models may vary between data sets within the service

DataSetInvoice

Field Name	Type	Description
dataSetCode	String	The Dataset Code
billingPoints	int	billing points charged to this dataset
recordsReturned	int	number of records returned via this dataset
dataLicenceGuid	String	GUID for this particular data set

EnumGender

Values
MALE
FEMALE
OTHER
UNSPECIFIED
UNKNOWN

ExecuteTraceResponse

Field Name	Type	Description
securityHeader	SecurityHeaderResponse	Authentication information for subsequent calls
informationHeader	InformationHeaderResponse	Information (news or alerts for the user)
transactionGuid	String	Unique transaction reference
profileResponse	ProfileResponse	Response to the query

IdmAddrAutoTraceInfo

Field Name	Type	Description
addressIndicator	EnumLocationCode	CURRENT \| PREVIOUS \| PRE_PREVIOUS
residencyScore	Integer
fromDate	IdmDataDate
toDate	IdmDataDate
confirmationDate	IdmDataDate
traceResults	String
addressHistoryRef	String	The credit linked adddress Plus reference to which address this result came from, for the Telephone Supplimentary call
personRef	String	The credit linked adddress Plus reference to which Person within above address that this result came from, for the Telephone Supplimentary call
applicationRef	String	Internal referecne for this call

IdmAddrLinkInfo

The returned IdmAddrLinkInfo data structure is detailed below:

Field Name	Type	Description
locationCode	EnumLocationCode	CURRENT \| PREVIOUS \| PRE_PREVIOUS
matchDetails	MatchDetails
linkDate	IdmDataDate
locationLinkIndicator	EnumLocationLinkIndicator	NEW_ADDRESS \| PREVIOUS_ADDRESS
levelNumber	Integer
locationLinkNumber	Integer
locationLinkCaption	String
addrDataSource	EnumAddressDataSource	CAIS \| PREVIOUS
sourceId	String	Unused
approximateResidencyLength	String	Approximate length of time at this address.
superSearchFlag String
caisAccNum	NOC	Any Notice of Corrections

IdmCCJInfo

The returned IdmCCJInfo data structure is detailed below:

Field Name	Type	Description
locationCode	EnumLocationCode	CURRENT \| PREVIOUS \| PRE_PREVIOUS
matchDetails	MatchDetails
informationDate	IdmDataDate
satisfactionDate	IdmDataDate
informationType	String
amount	String
plantiff	String
cameraNumber	String
ccjDataSource	EnumCCJDataSource	LCH \| SGEI \| SGG \| SGNI \| SGSC \| RTLS \| DTI \| NEIJ
gender	EnumGender	MALE \| FEMALE \| OTHER \| UNSPECIFIED \| UNKNOWN
jointAccountFlag	EnumJointAccount	FIRST_SEGMENT \| SECOND_SEGMENT \| NO_JOINT_ACCOUNT
caisAccNum	NOC	Any Notice of Corrections

IdmDataAdditionalDataGroup

Field Name	Type	Description
name	String	Name for this group of additional data
item	List of IdmDataItem	optional, unbounded list of IdmDataItem

IdmDataAdditionalDataListGroup

Field Name	Type	Description
name	String	Name for this group of additional data
item	List of IdmDataArrayAdditionalData	optional, unbounded list of IdmDataArrayAdditionalData

IdmDataAddress

Please note re. AdministrativeArea [in, out] This field holds the most common geographic data element within a country. For instance, USA State, and Canadian Province. Therefore the data previously supplied in SuperAdministrativeArea Up until February 2015 is now in the AdministativeArea.

Field Name	Type	Description
organisation	String	Organisation name
street	String	Main street or thoroughfare
town	String	Town or city
postCode	String	Postcode, postal-code orZIP-code
locality	String	Locality or district within the town or city
addPoint	String
department	String	Department within the organisation
subBuilding	String	Flat or apartment (including “Flat” or “Apartment” text if appropriate. E.g. “FLAT 4”)
buildingNumber	String	Number of the building
buildingName	String	Name of the building (use for any non-numeric building identifier)
buildingGroup	String	Name of the building group
poBox	String	PO Box number (including the “PO Box” text. E.g. “PO BOX 1234”)
subStreet	String	Side street, mews, partial street
subLocality	String	Village, hamlet or part of the district / locality
stateRegion	String	State, region, county
subAdministrativeArea	String	Sub-administrative area
administrativeArea	String	Administrative area
superAdministrativeArea	String	Super-administrative area
countryCode	String	ISO 3166-1 Alpha 3 Country Code
countryName	String	e.g. United Kingdom
dpsZipPlus	String	Royal Mail delivery point suffix, or ZIP+ code
formattedAddress	String	Formatted address
welshSubStreet	String	Welsh translation of sub street / dependant thoroughfare
welshStreet	String	Welsh translation of street name
welshSubLocality	String	Welsh translation of double dependant locality
welshLocality	String	Welsh translation of dependant locality
welshTown	String	Welsh translation of postal town
geographicInformation	IdmDataGeographic	Geographic Information
additionalItems	IdmDataArrayAdditionalData	General additional key/value items
groupedAdditionalItems	IdmDataAdditionalDataGroup	Groups of additional items
persons	IdmDataArrayOfCapturePerson	List of persons
uprn	String	Unique Property Reference Number
lpi	IdmDataLPI	Land and Property Identifier information
blpu	IdmDataBLPU	Basic Land and Property Unit information
streetDescriptor	IdmDataStreetDescriptor	Street Descriptor information
streetInformation	IdmDataStreetInformation	Street Information
companyInformation	IdmDataCompanyInformation	Company Information
onsPointerInformation	IdmDataPointer	OSNI LPS Pointer Data
classification	IdmDataClassification	Classification
osAl2Toid	String	OS MasterMap Address Layer 2 TOID
osItnToid	String	OS MasterMap Integrated Transport Network TOID
osTopoToid	String	OS MasterMap Topography Layer TOID
voaCtRecord	String	Cross-reference to a Valuation Office Agency Council Tax record
voaNdrRecord	String	Cross-reference to a Valuation Office Agency Non-domestic Rates record
apOSAPR	String
rmUDPRN	String	Royal Mail Unique Delivery Point Reference Number
mrOccCount	Integer	Multi-occupancy count of owning (parent) delivery point
alias	IdmDataRmAlias	RM Alias Information
utilitiesInformation	IdmDataUtilitiesInformation	Utilities Details
addressBaseCoreInformation	IdmDataAddressBaseCoreInformation	Address Base Core specific information
geoplusInformation	IdmDataGeoplusInformation	Geo+ specific information

IdmDataAddressBaseCoreInformation

Field Name	Type	Description
parentUprn	parentUprn	Parent UPRN
usrn	usrn	Unique Street Reference Number
osAddressToid	osAddressToid	OS Address Toid
rpc	rpc	Representative Point Code
osCountry	osCountry	OS Country
osClass	osClass	OS Class
lastUpdateDate	lastUpdateDate	Last Update Date
townName	townName	Town Name
poBox	poBox	PO Box
gssCode	gssCode	ONS GSS Code
island	island	Island

IdmDataAddressLinkInformation

Field Name	Type	Description
firstSeenDate	IdmDataDate	Date when the person was first seen at this address (having moved from the current search target)
lastSeenDate	IdmDataDate	Date when the person was last seen at this address (having moved to the current search target)

IdmDataAddressPlusTeldata

Field Name	Type	Description
applicationRef	String	reference to the call the other data referes to
addressHistory	int	The address within the supplied application reference that we are interested in
personRef	int	The person within the supplied address that we are interested in

IdmDataArrayAdditionalData

Field Name	Type	Description
item	IdmDataItem	List of IdmDataItems

IdmDataArrayFilter

Field Name	Type	Description
item	List of IdmDataItem	Filter items

IdmDataBankruptcyInformation

Field Name	Type	Description
aka	String	Also known as
type	String	Bankruptcy or insolvency type
startDate	IdmDataDate	Start date for the bankruptcy or insolvency period
dischargeDate	IdmDataDate	Discharge date for the bankruptcy or insolvency period
status	String	Status
practitioner	String	Insolvency practitioner

IdmDataBLPU

Field Name	Type	Description
blpuLogicalStatus	Integer	Logical status of the BLPU
blpuState	Integer	A code identifying the current state of the BLPU
blpuStateDate	IdmDataDate	Date at which the BLPU achieved its current state in the real-world
parentUprn	String	UPRN of the parent record
easting	Double	Easting coordinates in metres, defining the location in the British National Grid spatial reference system for this unit
northing	Double	Northing coordinates in metres, defining the location in the British National Grid spatial reference system for this unit
rpc	Integer	Representative point code
localCustodianCode	Integer	Unique identifier of the local custodian
blpuStartDate	IdmDataDate	Date this record was created
blpuEndDate	IdmDataDate	Date this record ceased to exist
blpuLastUpdateDate	IdmDataDate	Date this record was last changed
blpuEntryDate	IdmDataDate	Date of data entry
postalAddressable	String	Indicates whether the BLPU can receive a postal service.
postcodeLocator	String	Postcode of the coordinate for the BLPU based purely on a spatial match against Code-Point® with polygons. This field must be used in conjunction with the RPC field to determine the accuracy of its position
multiOccCount	Integer	A count of the child UPRNs associated to this record

IdMDataCaptureBank

Field Name	Type	Description
accountNumber	String	Bank account number
sortcode	String	Bank branch sort code

IdmDataCapturePerson

Field Name	Type	Description
organisation	String	Organisation name
title	String	Salutation
gender	EnumGender	MALE \| FEMALE \| OTHER \| UNSPECIFIED \| UNKNOWN
firstname	String	First name
middlename	String	Middle name
lastname	String	Last name
dateOfBirth	IdmDataDateWithRange	Date of birth
firstYearOfResidency	Integer	First year of residency
lastYearOfResidency	Integer	Last year of residency
yearsOfResidency	Integer	Years of residency
consentedLandlines	list of IdmDataSourcedValue	Consented landline telephones
consentedMobiles	list of IdmDataSourcedValue	Consented mobile telephones
consentedEmails	list of IdmDataSourcedValue	Consented email addresses
socialMedia	list of IdmDataAdditionalDataGroup	Social media report
additionalItems	IdmDataArrayAdditionalData	Additional data items
groupedAdditionalItems	list of IdmDataAdditionalDataGroup	Groups of additional data

IdmDataCaptureTelephone

Field Name	Type	Description
number	String	Telephone Number
type	EnumTelephone	UNKNOWN \| MOBILE \| LANDLINE

IdmDataClassification

Field Name	Type	Description
classKey	String	Unique key for the classification record
classificationCode	String	A code that describes the classification of the record. For example, CC03HD is an HM Detention Centre
classScheme	String	The name of the classification scheme used for this record
classStartDate	IdmDataDate	Date of start of this classification record
classEndDate	IdmDataDate	Date of end of this classification record
classLastUpdateDate	IdmDataDate	Date of last update
entryDate	IdmDataDate	Date of date entry
classPrimaryText	String	Primary description of classification e.g. “Commercial”
classSecondaryText	String	Secondary description of classification e.g. Community Services”
classTertiaryText	String	Tertiary description of classification e.g. “Prison”
classQuaternaryText	String	Quaternary description of classification, e.g. “HM Detention Centre”

IdmDataCompanyInformation

Field Name	Type	Description
organisationName	String	Name of current occupier on the fascia of the BLPU
legalOrganisationLegalName	String	Registered legal name of organisation
organisationKey	String	AddressBase Premium Organisation Key
organisationStartDate	IdmDataDate	Date this record was created
organisationEndDate	IdmDataDate	Date this record ceased to exist
organisationLastUpdateDate	IdmDataDate	Date this record was last changed
organisationEntryDate	IdmDataDate	Date of data entry

IdmDataDirectorInformation

Field Name	Type	Description
lastUpdate	IdmDataDate	Date information was last updated
detailURL	String	URL linking to the disqualification
caseReference	String	Case Reference Number
nationality	String	Nationality of Director
startDate	IdmDataDate
endDate	IdmDataDate
firstCompany	String
firstCompanyNumber	String
numberOfCompanies	String
reason	String	Reason for Disqualification

IdmDataGeoplusInformation

Field Name	Type	Description
umrrn	umrrn	Unique Multiple-Residence Reference Number The UMRRN is the unique key of a premises that shares a Royal Mail Delivery Point with other premises. The Delivery Point is an address on PAF. Typically, MRs are flats, apartments and units that are located behind a shared entrance and are not directly accessible for mail delivery. For example, flats that share a common, locked front door through which mail is delivered. There are approximately 850,000 MR records on Geo+
owningUdprn	owningUdprn	Owning Unique Delivery Point Reference Number (UDPRN) for a Multiple Residence address. This is the UDPRN of the parent or ‘shell’ address on PAF in which a Multiple Residence property is located. For example, the Owning UDPRN of the Multiple Residence address “Flat 1, Princes House” would be the UDPRN of “Princes House”
parentUprn	parentUprn	Parent Unique Property Reference Number This is the UPRN of the Owning UDPRN of a Multiple-Residence address and is inferred from the relationship of an MR with it’s owning PAF ‘parent’.
largeSmall	largeSmall	Large/Small PAF user type, one of: L: Large S: Small All Large user types are organisations and have a unique postcode. Small user types can be organisations and residential properties and which can share a postcode
smallOrgFlag	smallOrgFlag	Small Organisation Flag Yes: Address is a Small user type and is also an organisation
nybFlag	nybFlag	Not Yet Built flag Yes: if the address is on the Royal Mail Not-Yet-Built file The NYB file contains addresses of properties that have either not been completely built or are otherwise not yet occupied and not in receipt of mail and are thus not yet a Delivery Point on the Royal Mail PAF. However, NYBs have been registered through the address naming and numbering system and have full addresses, postcodes and have already been assigned a Unique Delivery Point Refernce Number (UDPRN). Properties typically remain on the NYB file for between 1 and 3 months before being transferred to the main PAF file, but can in some cases stay on the file for up to a year. The number of addresses on the NYB file typically fluctuates between 400,000 to 600,000.
uprnDerivation	uprnDerivation	The UPRN-Derivation code idenitifes how the Ordnance Survey (OS) UPRN (Unique Property Reference Number) has been derived and appended to the Geo+ address. 1: One-to-one cross-reference of PAF UDPRN to OS UPRN 2: One-to-one cross-reference of NYB UDPRN to OS UPRN 4: Multi-Residence address matched to OS UPRN address
geoDerivation	geoDerivation	This Geo-Derivation code identifies how the geo-coordinates have been appended to the address. Codes 1,4 and 5 are premises-level geo-coordinates. Codes 6 and 7 are postcode-level geo-coordinates: All addresses in a postcode with these derivation codes share the same geo-coordinates. 1: Direct UDPRN cross-reference to UPRN geo-codes 4: MR address matched to OS UPRN address 5: MR geo-coordinates inferred from Owning UDPRN 6: Geo-coordinates derived from Royal Mail source 7: Geo-coordinates derived from OS source 9: No geo-coordinate data available Currently, no geo-coordinates are available for addresses in Jersey (JE), Guernsey (GY) or Isle-of-Man (IM)
rmAkok	rmAkok	Royal Mail Address/Organisation Key

IdmDataUtilitiesElectricityInformation

Field Name	Type	Description
meterPointCount	Integer	Number of electricity meter points at address
meterPoint	IdmDataUtilitiesElectricityMeterPoint	List of Electricity meters in the property
originalPostcode	String	Postcode associated with MPAN from electricity distributor
avgDomCons	String	Average annual electricity domestic consumption for the postcode of this property in kWH (Utilities Premium Service Only)
medDomCons	String	Median annual electricity domestic consumption for the postcode of this property in kWH (Utilities Premium Service Only)
yearDomCons	String	Year on which the electricity domestic consumption figures are based e.g. 2013. (Utilities Premium Service Only)

IdmDataUtilitiesElectricityMeterPoint

Field Name	Type	Description
meterPointTag	String	Text description associated with the supply e.g. “Landlords Supply”. Not part of the address (Utilities Premium Service Only)
mpan	String	The Meter Point Administration Number
meterCount	Integer	Number of meters on this supply
meter	IdmDataUtilitiesElectricityMeter	List of Electricity Meters
profileType	String	The Profile Type or Profile Class indicates the type of supply.
timeSwitchCode	String	The Time Switch Code or Meter Time Switch Class reflects the various registers which a meter may have.
lineLossFactorId	String	The Line Loss Factor Identifier or Line Loss Factor Class Identifier is used to calculate the distribution charges
standardSettlementConfiguration	String	A standard Metering System configuration.
energisationStatus	String	The status of the supply point: E if energised, or D if de-energised.
energisationEffectiveFromDate	IdmDataDate	Date from which the supply point was energised.
distributorId	String	The Distributor Identifier is the numeric identifier for the local distributor.
gspid	String	The Grid Supply Point Group Identifier, identifying the local distribution system.

Electricity Meter Point Top-line Information

Some of the elements described above are only returned if the user is subscribed to the Topline information package option.

gspid
distributorId
profileType
timeSwitchCode
lineLossFactor
standardSettlementConfiguration
energisationStatus
energisationEffectiveFromDate

IdmDataUtilitiesElectricityMeter

Field Name	Type	Description
serialNumber	String	Meter Serial Number
type	String	Meter type

IdmDataSearchUtilitiesInformation

Field Name	Type	Description
mprn	String	Gas Meter Point Reference Number
gasMeterNumber	String	Gas meter number
mpan	String	Electricity Meter Point Administration Number
electricityMeterNumber	String	Electricity meter number

IdmDataUtilitiesGasInformation

Field Name	Type	Description
lguf	String	Large Gas User Flag (Utilities Standard Service Only)
originalPostcode	String	Postcode associated with MPRN from gas transporter
meterPointCount	Integer	Number of gas meter points at address
meterPoint	IdmDataUtilitiesGasMeterPoint	Gas supply meter point
avgDomCons	String	Average annual gas domestic consumption for the postcode of this property in kWH (Utilties Register Premium Service Only)
medDomCons	String	Median annual gas domestic consumption for the postcode of this property in kWH (Utilties Register Premium Service Only)
yearDomCons	String	Year on which the gas domestic consumption figures are based e.g. 2013 (Utilties Register Premium Service Only)

IdmDataUtilitiesGasMeterPoint

Field Name	Type	Description
meterPointTag	String	Text description associated with the supply e.g. “Landlords Supply”. Not part of the address (Utilties Register Premium Service Only)
mprn	String	Meter Point Reference Number
meterCount	Integer	Number of gas meters associated with this supply point
meter	List of IdmDataUtilitiesGasMeter	List of gas Meters

IdmDataUtilitiesGasMeter

Field Name	Type	Description
serialNumber	String	Meter Serial Number
largeSiteIndicator	String	Indicator that this site is a large gas user (Utilties Register Premium Service Only)

IdmDataDate

Field Name	Type	Description
day	Integer	Day of the month (1..31)
month	Integer	Month of the year (1..12)
year	Integer	Year (e.g. 2016)

IdmDataDateWithRange

Field Name	Type	Description
day	Integer	Day of the month (1..31)
month	Integer	Month of the year (1..12)
year	Integer	Year (e.g. 2016)
range	IdmDataDateRange	(optional)age range

IdmDataDateRange

Field Name	Type	Description
minAge	Integer	Minimum age
maxAge	Integer	Maximum age

IdmDataDateOfBirthWithAge

Field Name	Type	Description
value	IdmDataDate	date of information
source	String	source of information
lastUpdated	IdmDataDate	date information was last updated
confidence	Integer	confidence level in data 1-10, where 10 is most confident
reference	String	information reference
matchedName	String	source of information
age	Integer	Age in years

IdmDataSourcedDateWithConfidence

Field Name	Type	Description
value	IdmDataDate	date of information
source	String	source of information
lastUpdated	IdmDataDate	date information was last updated
confidence	Integer	confidence level in data 1-10, where 10 is most confident
reference	String	information reference
matchedName	String	source of information

Deceased information Example

If a person is deceased, the IdmDataTracePerson will contain IdmDataSourcedDateWithConfidence elements as in the following example for DDRI

<trace:isDeceased>true</trace:isDeceased>
<trace:datesOfDeath>
    <trace:sourcedDate>
        <trace:value>
            <data:day>3</data:day>
            <data:month>11</data:month>
            <data:year>2012</data:year>
        </trace:value>
        <trace:source>DDRI:E</trace:source>
        <trace:reference>504758304</trace:reference>
        <trace:matchedName>OTHERWISE ROBERT JEREMY TRUMP</trace:matchedName>
    </trace:sourcedDate>
</trace:datesOfDeath>

If the person is recorded as deceased in NDR, then the response may be as follows:

<trace:isDeceased>true</trace:isDeceased>
  <trace:datesOfDeath>
      <trace:sourcedDate>
          <trace:value>
              <data:day>3</data:day>
              <data:month>11</data:month>
              <data:year>2012</data:year>
          </trace:value>
          <trace:source>NDR</trace:source>
      </trace:sourcedDate>
  </trace:datesOfDeath>

IdmDataArrayOfSourcedDates

Field Name	Type	Description
sourcedDate	IdmDataSourcedDateWithConfidence	List of IdmDataSourcedDateWithConfidence

IdmDataDirectorInformation

Field Name	Type	Description
companyName	String	Name of the company where the person is a director
registrationNumber	String	Name of the company where the person is a director
active	boolean	Flag to indicate if the person is an active director

IdmDataExecutiveInformation

Field Name	Type	Description
title	String	Salutation
firstName	String	First name
middleName	String	Middle name
lastName	String	Last name
jobTitle	String	Job title
appointmentDate	IdmDataDate	Date of appointment
resignationDate	IdmDataDate	Date of resignation
homeAddress	IdmDataTraceAddress	Home address

IdmDataArrayOfExecutivesInformation

Field Name	Type	Description
executive	IdmDataExecutiveInformation	unbounded list of executives

IdmDataGeographic

Field Name	Type	Description
easting	String	Grid reference easting
northing	String	Grid reference northing
latitude	String	Latitude
longitude	String	Longitude
status	EnumGeoCodeStatus	Status
level	EnumGeoCodeLevel	Level
distance	float	Distance
radius	IdmDataRadius	Radius search information

The status enumeration may take one of the following values:

EnumGeoCodeStatus


POINT
INTERPOLATED
AVERAGE
NONE

The level enumeration may take one of the following values:

EnumGeoCodeLevel


DELIVERYPOINT
PREMISE
THOROUGHFARE
LOCALITY
ADMINISTRATIVEAREA
NONE

IdmDataRadius

Field Name	Type	Description
unit	EnumRadiusUnit	Unit of distance
distance	Double	Distance in the specified units

EnumRadiusUnit


MI
KM

IdmDataItem

Field Name	Type	Description
key	String	key part of key-value pair
value	String	value part of key-value pair

IdmDataLPI

Field Name	Type	Description
lpiKey	String	Unique key for the LPI
lpiLanguage	String	A code that identifies the language used for the descriptor
lpiLogicalStatus	Integer	Logical status of this record
lpiStartDate	IdmDataDate	Date this record or version was created
lpiEndDate	IdmDataDate	Date this record ceased to exist
lpiLastUpdateDate	IdmDataDate	Date this record was last changed
lpiEntryDate	IdmDataDate	Date of data entry
saoStartNumber	Integer	The number of the secondary addressable object (SAO) or the start of the number range
saoStartSuffix	String	The suffix to the SAO Start Number
saoEndNumber	Integer	The end of the number range for the SAO
saoEndSuffix	String	The suffix to the SAO End Number
saoText	String	Contains the building name or description for the SAO
paoStartNumber	Integer	The number of the primary addressable object (PAO) or the start of the number range
paoStartSuffix	String	The suffix to the PAO Start Number
paoEndNumber	Integer	The end of the number range for the PAO
paoEndSuffix	String	The suffix to the PAO End Number
paoText	String	Contains the building name or description for the PAO
usrn	String	Unique Street Reference Number foreign key linking the Street record to the LPI record
usrnMatchIndicator	Byte	This field indicates how the item was matched to a Street
areaName	String	Third level of geographic area name, for example, to record island names or property groups such as crofts
level	String	Memorandum of the vertical position of the address
officialFlag	String	Status of the Address

IdmDataPerson

Field Name	Type	Description
Title	String	Title of person I.E. Mr, Miss Mrs
Gender	EnumGender	Gender of person
Firstname	String	First name of person
Middlename	String	Middlename or middle initial of person
Lastname	String	Last name of person
Date of Birth	IdmDataDateWithRange	Date of birth of person

IdmDataPointer

Field Name	Type	Description
ptrAltThoroughfare	String	Alternate thoroughfare name e.g. if the thoroughfare name is “Sheskin Park” the alternate thoroughfare may be “Páirc An Seascainn”
ptrTownland	String	NI-specific townland name
ptrBLPU	String	(reserved for future use)
ptrUniqueBuildingId	String	12-digit identifying a Primary Addressable Object defined by the ‘physical footprint’ of the building shell
ptrLocalCouncil	String	The name of the administrative area (local council) in which the building exists
ptrXcor	String	1m accurate easting coordinate based on the Irish Grid
ptrYcor	String	1m accurate northing coordinate based on the Irish Grid
ptrTempCoord	String	If “Y”, then indicates that PrtXcor and PtrYcor are temporary coordinates. Null indicates that PtrXcor and PtrYcor are permanent
ptrBuildingStatus	String	The current physical status of the building
ptrAddressStatus	String	The current logical status of the address
ptrClassCode	String	A code signifying the current use of the building e.g. “ND_culture”
ptrClassDescription	String	A textual description for the PrtClassificationCode, e.g. “Cultural (incl museums, libraries)“
ptrCreationDate	IdmDataDate	The date when an address was first entered into the system by the local council
ptrCommencementDate	IdmDataDate	The date when the construction of the property began
ptrArchivedDate	IdmDataDate	The date when an address is deemed to be no longer in use
ptrPostTown	String	The town allocated as the main postal centre for an area. May differ from the TOWN field in the main address

IdmDataPricePaid

The IdmDataPricePaid returns populated with information about the price paid when a property was sold, as reported by the Land Registry. The IdmDataArrayOfPricePaid may contain up to five individual IdmDataPricePaid child elements.

Field Name	Type	Description
salePrice	String	The price paid in pounds sterling
saleDate	IdmDataDate	The date of the sale
propertyType	String	Description of the type of property
newBuild	Boolean	Indicates if the property was a new build when it was sold
freehold	Boolean	Indicates if the property is freehold

Example Sample price paid response element:

<trace:pricesPaid>
    <trace:pricePaid>
        <trace:salePrice>120000</trace:salePrice>
        <trace:saleDate>
            <data:day>1</data:day>
            <data:month>11</data:month>
            <data:year>2013</data:year>
        </trace:saleDate>
        <trace:propertyType>Flats/Maisonettes</trace:propertyType>
        <trace:newBuild>false</trace:newBuild>
        <trace:freehold>false</trace:freehold>
    </trace:pricePaid>
</trace:pricesPaid>

IdmDataPropertyInformation

The IdmDataPropertyInformation returns information about rental properties.

Field Name	Type
houseType	String
tenure	String
numberOfBedrooms	Integer
numberOfBedSpaces	Integer
numberOfReceptionRooms	Integer
numberOfBathrooms	Integer
numberOfFloors	Integer
councilTaxBand	String
dateBuilt	IdmDataDate
periodBuilt	String
listedBuilding	Boolean
farm	Boolean
garage	Boolean
valuation	String
valuationDate	IdmDataDate
convertedProperty	Boolean
decentHomesStandard	Boolean
selfContained	Boolean
furnished	Boolean
lowCostHomeOwnership	Boolean
sharedOwnershipPercentage	Integer
sapRating	IdmDataDate
sapRatingDate	String
confirmationOfManager	String
confirmationOfOwnership	String
annualRentalIncome	Integer
additionalData	IdmDataArrayAdditionalData

IdmDataResidencyPeriod

Field Name	Type	Description
day	Integer	Day of the month (1..31)
firstMonthOfResidency	IdmDataDate	Start of the residency period
lastMonthOfResidency	IdmDataDate	End of the residency period

IdmDataRmAlias

Field Name	Type	Description
aliasCategory	String	Alias category code
aliasText	String	The alias text

IdmDataSourcedValueWithConfidence

Field Name	Type	Description
source	String	Source of the data
lastUpdated	IdmDataDate	Date when the data was last updated
confidence	Integer	Confidence value

IdmDataArrayOfSourcedValues

Field Name	Type	Description
sourcedValue	IdmDataSourcedValueWithConfidence	unbounded list of sourced values

IdmDataAddress

Field Name	Type	Description
organisation	String	Organisation name
street	String	Searches Thoroughfare and Dependant Thoroughfare. Multiple values can be provided using a comma as a delimiter (e.g.Lumley Road, Ormonde Road)
town	String	Town
postCode	String	Postcode
locality	String	Area smaller than a town, such as a village. Relates to a Royal Mail Dependant Locality
addPoint	String	Eircode address point
department	String	Department in the organisation
subBuilding	String	Apartment or flat within the building
building	String	Building name or number (use this field if the building identifier is ambiguous)
buildingName	String	Name of the building (use for any non-numeric building identifier)
buildingNumber	String	Number of the building
buildingGroup	String	Eircode group of buildings, such as a terrace
subStreet	String	Side street or minor lane off the main street
subLocality	String	Area smaller than a locality, such as a district. Relates to a Royal Mail Double Dependant Locality
stateRegion	String	State, region, county
countryCode	String	ISO 3166-1 Alpha 3 Country Code - Default: GBR
countryName	String	e.g. United Kingdom
poBox	String	PO Box number (including the “PO Box” text. E.g. “PO BOX 1234”)
freeFormatAddress	String	Full address in free format (Comma separated elements, e.g. “5, High Street, MyTown, MyCounty”)
geographicInformation	IdmDataGeographic	Geographic information
additionalItems	IdmDataArrayAdditionalData	Additional search items such as URNs, address keys etc.
persons	IdmDataArrayOfCapturePerson	Array of IdmDataCapturePerson
utilitiesInformation	IdmDataSearchUtilitiesInformation	Utility (gas, electricity) information

IdmDataStreetDescriptor

Field Name	Type	Description
streetDescription	String	Name, description or street number
locality	String	Defines an area or geographical identifier within a town, village or hamlet
townName	String	Town name
administrativeArea	String	Local Highway Authority name
streetLanguage	String	A code identifying the language in use for the descriptive identifier

IdmDataStreetInformation

Field Name	Type	Description
streetType	Integer	Street type
swaOrgRefNaming	Integer	The code of the Street Naming and Numbering Authority or the Local Highway Authority
streetState	Integer	A code identifying the current state of the Street
stateDate	IdmDataDate	Date at which the street achieved its current state in the world
streetSurface	Integer	A code to indicate the surface finish of the street
streetClassification	Integer	A code for the primary street classification
streetVersion	Integer	Version number of the street record
streetLastUpdateDate	IdmDataDate	Date this record was last changed
streetEntryDate	IdmDataDate	Date of data entry
streetStartDate	IdmDataDate	Date this record or version was created
streetEndDate	IdmDataDate	Date this record ceased to exist
streetStartEasting	Double	Easting coordinates in metres, defining the location in the British National Grid spatial reference system for the start point of the street
streetStartNorthing	Double	Northing coordinates in metres, defining the location in the British National Grid spatial reference system for the start point of the street
streetEndEasting	Double	Easting coordinates in metres, defining the location in the British National Grid spatial reference system for the end point of the street
streetEndNorthing	Double	Northing coordinates in metres, defining the location in the British National Grid spatial reference system for the end point of the street
streetTolerance	Integer	The tolerance of the start and end coordinates in metres

IdmDataTraceAddress

Field Name	Type	Description
poBox	String	PO Box number (including the “PO Box” text. E.g. “PO BOX 1234”)
dpsZipPlus	String	Royal Mail delivery point suffix
subBuilding	String	Flat or apartment (including “Flat” or “Apartment” text if appropriate. E.g. “FLAT 4”)
buildingNumber	String	Number of the building
buildingName	String	Name of the building (use for any non-numeric building identifier)
subStreet	String	Dependent thoroughfare
street	String	Main thoroughfare
postCode	String	Postcode
subLocality	String	Royal Mail double-dependent locality (e.g. village)
locality	String	Royal Mail dependent locality (e.g. district)
town	String	Royal Mail post town
stateRegion	String	County
countryCode	String	ISO 3166-1 Alpha 3 Country Code - Default: GBR
countryName	String	e.g. United Kingdom
freeFormatAddress	String	Comma-delimited list of unknown address elements
additionalItems	IdmDataArrayAdditionalData	Reserved for future use
addressRecordId	int	Identifier for this property
pafMultipleResidency	boolean	Flag to indicate if Royal Mail identify this address as a Property in Multiple Occupancy
geographicInformation	IdmDataGeographic	See section on Geographic information
preMoverInformation	IdmDataTracePreMoverInformation	Information for properties where the occupants have shown an interest in moving
utilitiesInformation	IdmDataUtilitiesInformation	See section on Utilities information
rentalProperty	boolean	Flag to indicate if this address as a rental Property
socialHousing	boolean	Flag to indicate if this address is Clasified as Social Housing
addrLinkInfo	IdmAddrLinkInfo	Credit Address link information
propertyInformation	IdmDataPropertyInformation	List of property information
addrAutoTraceInfo	IdmAddrAutoTraceInfo	Autotrace address information

The pre-mover IdmDataTracePreMoverInformation data structure is detailed below:

IdmDataTracePreMoverInformation

Field Name	Type	Description
isPreMover	boolean	Flag to indicate if the property has occupants have shown an interest in moving, as shown by a property search having been conducted against the property
preMoverSearchDate	IdmDataDate	List of date on which a property search was made

IdmDataTraceAddressPlus

Field Name	Type	Description
poBox	String	PO Box number (including the “PO Box” text. E.g. “PO BOX 1234”)
dpsZipPlus	String	Royal Mail delivery point suffix
subBuilding	String	Flat or apartment (including “Flat” or “Apartment” text if appropriate. E.g. “FLAT 4”)
buildingNumber	String	Number of the building
buildingName	String	Name of the building (use for any non-numeric building identifier)
subStreet	String	Dependent thoroughfare
street	String	Main thoroughfare
postCode	String	Postcode
subLocality	String	Royal Mail double-dependent locality (e.g. village)
locality	String	Royal Mail dependent locality (e.g. district)
town	String	Royal Mail post town
stateRegion	String	County
countryCode	String	ISO 3166-1 Alpha 3 Country Code - Default: GBR
countryName	String	e.g. United Kingdom
freeFormatAddress	String	Comma-delimited list of unknown address elements
additionalItems	IdmDataArrayAdditionalData	Reserved for future use
addressRecordId	int	Identifier for this property
pafMultipleResidency	boolean	Flag to indicate if Royal Mail identify this address as a Property in Multiple Occupancy
geographicInformation	IdmDataGeographic	See section on Geographic information
preMoverInformation	IdmDataTracePreMoverInformation	Information for properties where the occupants have shown an interest in moving
utilitiesInformation	IdmDataUtilitiesInformation	See section on Utilities information
rentalProperty	boolean	Flag to indicate if this address as a rental Property
socialHousing	boolean	Flag to indicate if this address is Clasified as Social Housing
addrLinkInfo	IdmAddrLinkInfo	Credit Address link information
propertyInformation	IdmDataPropertyInformation	List of property information
addrAutoTraceInfo	IdmAddrAutoTraceInfo	Autotrace address information
persons	IdmDataArrayOfTracePerson	See section on Person information
business	IdmDataArrayOfTraceBusiness	See section on Business information
pricePaid	IdmDataArrayOfPricePaid	Information on the price paid when the property was sold

The pre-mover IdmDataTracePreMoverInformation data structure is detailed below:

IdmDataTracePreMoverInformation

Field Name	Type	Description
isPreMover	boolean	Flag to indicate if the property has occupants have shown an interest in moving, as shown by a property search having been conducted against the property
preMoverSearchDate	IdmDataDate	List of datee on which a property search was made

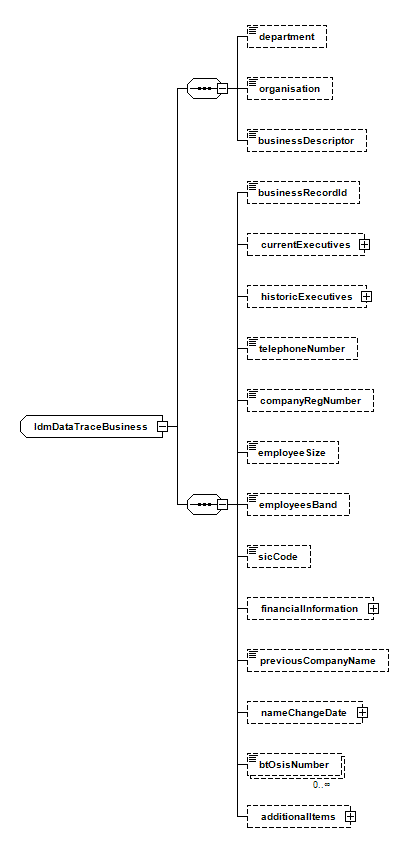

IdmDataTraceBusiness

The IdmDataTraceBusiness data structure is detailed below:

Field Name	Type	Description
businessRecordId	String	Identifier for this business
department	String	Department
organisation	String	Organisation
businessDescriptor	String	Description of the business
currentExecutives	IdmDataArrayOfExecutivesInformation	Array of information on current executives
historicExecutives	IdmDataArrayOfExecutivesInformation	Array of information on previous executives
telephoneNumber	String	Business telephone number
companyRegNumber	String	Registered company number
employeeSize	int	Number of employees
employeesBand	String	Band letter code for the size of the company
sicCode	String	SIC code
financialInformation	IdmDataTraceBusinessFinancial	Financial information about the business
previousCompanyName	String	Previous company name (if the name has changed)
nameChangeDate	IdmDataDate	Date on which the company name was changed
btOsisNumber	String	List of BT-OSIS listed telephone numbers
additionalItems	IdmDataArrayAdditionalData	Array of any further information on the business

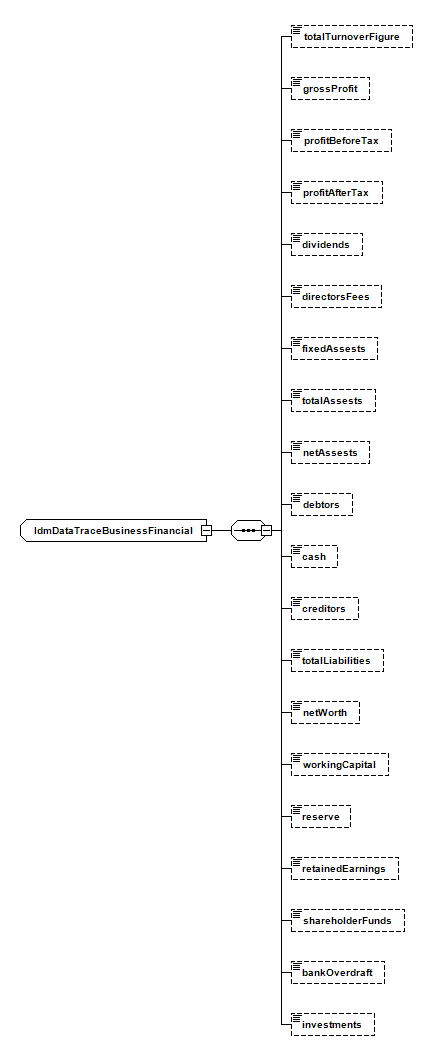

IdmDataTraceBusinessFinancial

IdmDataTraceBusinessFinancial structure

Field Name	Type	Description
totalTurnoverFigure	String	Turnover (pounds sterling)
grossProfit	String	Gross profit (pounds sterling)
profitBeforeTax	String	Profit before tax (pounds sterling)
profitAfterTax	String	Profit after tax (pounds sterling)
dividends	String	Dividends (pounds sterling)
directorsFees	String	Directors fees (pounds sterling)
fixedAssests	String	Fixed assests (pounds sterling)
totalAssests	String	Total assests (pounds sterling)
netAssests	String	Net assests (pounds sterling)
debtors	String	Debtors (pounds sterling)
cash	String	Cash (pounds sterling)
creditors	String	Creditors (pounds sterling)
totalLiabilities	String	Total liabilities (pounds sterling)
netWorth	String	Net worth (pounds sterling)
workingCapital	String	Working capital (pounds sterling)
reserve	String	Reserve (pounds sterling)
retainedEarnings	String	Retained earnings (pounds sterling)
shareholderFunds	String	Shareholder funds (pounds sterling)
bankOverdraft	String	Bank overdraft (pounds sterling)
investments	String	Investments (pounds sterling)

IdmDataTraceOptions

Field Name	Type	Description
offset	int	0-based offset into the results for the returned data (Default: 0)
maxReturn	int	Maximum number of records to return from the search (Default: 10) If Zero is supplied the default for that service shall be used.
traceDataLevel	EnumTraceDataLevel	Indicates the level of information to be returned (Default: PERSON)
maximumERYears	EnumTraceRecencyYears	Maximum number of Electoral Roll years to search (backwards from the current year) (Default: ALL)
includeBusiness	Boolean	Flag indicating whether business records should be included in the results (Default: true)
includeDeceased	Boolean	Flag indicating whether deceased persons should be included in the results (Default: true)
includeExecutiveNames	Boolean	Flag indicating whether business executive names should be searched (Default: true)
transposeNames	Boolean	Flag indicating whether firstName and lastName values should be transposed in the search (Default: false)
consentedDataOnly	Boolean	Flag indicating whether only persons with consented data should be included in the search (Default: false)
returnConsentedDataWithSearch	Boolean	Flag indicating whether persons with consented data should be returned in the results (Default: false)
enhancedSearching	Boolean	Flag indicating whether enhanced (approximate phonetic matching) should be attempted in the search when matching names. (Default: false). For example, with enhancedSearching= true , a person with lastName= Brown would also be returned when searching against lastName= Braun.
radiusRangeMiles	EnumTraceRadiusRangeMiles	The distance in miles for which to search for matching persons. Only relevant for the Person Details profile.

The traceDataLevel enumeration may take one of the following values:

EnumTraceDataLevel


Option
PERSON
BUILDING
STREET
LOCALITY

The maximumERYears enumeration may take one of the following values:

EnumTraceRecencyYears


Option
ALL
1
5
10
15
20

Person radius search Purpose: to search for individuals with the same first name and last name as the target person. How to do it: specify a radius value in the radiusRangeMiles of the traceOptions block. The value must be one of the allowed values:

EnumTraceRadiusRangeMiles - Contains the following integer options:


1	6	15
2	7	20
3	8	25
4	9	50
5	10

IdmDataTracePerson

Field Name	Type	Description
personRecordId	String Identifier for this person
title	String	Title of person (e.g. Ms, Mr, Dr, Mrs)
gender	EnumGender	Gender of person
firstName	String	First name (forename) of the person
middleName	String	Middle initial of the person
lastName	String	Last name (surname) of the person
possibleMarriedName	String	Possible married name
sourceType	EnumTracePersonSourceType	Primary source of the information on this person
goneAway	boolean	Flag to indicate if the person is listed as Goneaway
goneAway+	IdmDataGasrGoneAwayInfo	Goneaway+ information
approximateResidencyLength	int	Number of years that the person may been have residence at this address
residency	IdmDataResidencyPeriod	One or more blocks of residency periods
consentedLandlines	IdmDataArrayOfSourcedValues	Array of consented landline telephone numbers
consentedMobiles	IdmDataArrayOfSourcedValues	Array of consented mobile telephone numbers
consentedEmails	IdmDataArrayOfSourcedValues	Array of consented email addresses
btOsisNumber	String	List of BT-OSIS listed telephone numbers
datesOfBirth	IdmDataArrayOfDateOfBirthWithAge	Array of possible dates of birth
isDeceased	Boolean	(optional) If true, indicates that this person is deceased. If false or omitted, indicates that this person is not deceased
datesOfDeath	IdmDataArrayOfSourcedDates	Array of possible dates of death (If present, indicates that this person is deceased) : In the case of NDR this date is the date the death was recorded.
directedBusinesses	IdmDataArrayOfDirectorInformation	Array of business directorships
declarationsOfBankruptcy	IdmDataBankruptcyInformation	Array of insolvency and bankruptcy information
disqualifiedDirectors	IdmDataDirectorInformation	Disqualified Directors
addressLinkInformation	IdmDataAddressLinkInformation	Information on linked addresses
onEditedER	boolean	Set to true if the person is on the edited Electoral Roll
onCommercialRoll	boolean	Set to true if the person is on the commercial (top-up) roll
additionalItems	IdmDataArrayAdditionalData	Array of any further information on the person
groupedRelatedData	IdmDataAdditionalDataGroup	Additional information held as a specific related group. As an example, any information on insurance policies taken out by the person are in a group with name Insurance.

The sourceType enumeration may take one of the following values:

EnumTracePersonSourceType


CURRENT
HISTORIC
ER_TOP_UP
CONSENTED
BUSINESS

IdmDataTraceSearchAddress

Field Name	Type	Description
poBox	String	PO Box number (including the “PO Box” text. E.g. “PO BOX 1234”)
dpsZipPlus	String	Royal Mail delivery point suffix
subBuilding	String	Flat or apartment (including “Flat” or “Apartment” text if appropriate. E.g. “FLAT 4”)
buildingNumber	String	Number of the building
buildingName	String	Name of the building (use for any non-numeric building identifier)
subStreet	String	Dependent thoroughfare
street	String	Main thoroughfare
postCode	String	Postcode
subLocality	String	Double-dependent locality (e.g. village)
locality	String	Dependent locality (e.g. district)
town	String	Post town
stateRegion	String	County
countryCode	String	ISO 3166-1 Alpha 3 Country Code - Default: GBR (not currently used)
countryName	String	Default: United Kingdom (not currently used)
freeFormatAddress	String	Comma-delimited list of unknown address elements (not currently used)
additionalItems	IdmDataArrayAdditionalData	Additional Data as Required
persons	IdmDataArrayOfTraceSearchPerson	Information about the list of people associated with this address
business	IdmDataTraceSearchBusiness	Information about any Business associated with this address
pricePaid	IdmDataPricePaid	Reserved for future use

The persons element of an address is an array (of type IdmDataArrayOfTraceSearchPerson) with a maximum of two persons specified. The structure for each person is shown in: IdmDataTraceSearchPerson

IdmDataTraceSearchBusiness

Field Name	Type	Description
department	String	Department name
organisation	String	Organisation (company) name
businessDescriptor	String	Business descriptor keyword. Typically use with a trailing wildcard (e.g. “RETAIL*“)

IdmDataTraceSearchPerson

Field Name	Type	Description
title	String	Title of person (e.g. Ms, Mr, Dr, Mrs)
gender	EnumGender	Gender of person
firstName	String	First name (forename) of the person
middleName	String	Middle initial of the person
lastName	String	Last name (surname) of the person
dateOfBirth	IdmDataTraceDateWithRange	Date object containing a date of birth
exactMiddleName	Boolean	Flag to indicate when strict matching on the middle initial is required (default: true)
relatedPeople	IdmRelatedTracePersons	See Section on related Person
additionalItems	IdmDataArrayAdditionalData	Reserved for future use

The gender enumeration may take one of the following values:

EnumGender

Option
MALE
FEMALE
OTHER
UNSPECIFIED
UNKNOWN

The dateOfBirth structure may contains the following elements:

IdmDataTraceDateWithRange

Field Name	Type
day	int
month	int
year	int
range	(Optional) May contain a range for the age of the person. This can be used as an alternative to specifying a particular date.

The range structure may contains the following elements:

IdmDataDateRange

Field Name	Type
minAge	int
maxAge	int

IdmDataUtilitiesInformation

Field Name	Type	Description
fuelType	fuelType	GAS \| ELECTRICITY \| BOTH
gasInformation	IdmDataUtilitiesGasInformation	Gas Utility information
electricityInformation	IdmDataUtilitiesElectricityInformation	Electricity Utility information

IdmRelatedTracePersons

Field Name	Type	Description
type	EnumRelatedPersonType	UNKNOWN \| NEIGHBOUR \| ALIAS
person	List of IdmDataRelatedPerson	See section of related Person

IdmDataRelatedPerson

Field Name	Type	Description
title	String	Title of person (e.g. Ms, Mr, Dr, Mrs)
gender	EnumGender	MALE \| FEMALE \| OTHER \| UNSPECIFIED \| UNKNOWN
firstname	String	First name (forename) of the person
middlename	String	Middle initial of the person
lastname	String	Last name (surname) of the person
DateOfBirth	IdmDataDateWithRange	Date object containing a date of birth

IdmRequestOptions

Field Name	Type	Description
addressEnvelopeFormat	String	Format of the free form text returned in the formattedAddress field of each address, as described by an Envelope Format string.
relatedDataItems	IdmDataArrayKeys	List of keys (string) of address-related data to return for each address.
offset	int	Record number of the first record to be returned in the list (0 based)
maxReturn	int	Maximum number of records to be returned
addressSearchType	String	Not used
casing	EnumCasing	UPPER \| LOWER \| MIXED
additionalItems	IdmDataArrayAdditionalData	Extensible array of key value pairs
transliteration	EnumTransliteration	NATIVE \| LATIN \| INPUT
countryCodeFormat	EnumCountryCodeFormat	ISO3 \| ISO2 \| ISON

Envelope Format

The following envelope formats are recognised by the Web service:

Format Code	Description
A4P	Four address lines and postcode
A5P	Five address lines and postcode
A6P	Six address lines and postcode
A2TCP	Two address lines, town, county and postcode
A3TCP	Three address lines, town, county and postcode
A4TCP	Four address lines, town, county and postcode
NA4P	Name, four address lines and postcode
NA5P	Name, five address lines and postcode
NA6P	Name, six address lines and postcode
NA2TCP	Name, two address lines, town, county and postcode
NA3TCP	Name, three address lines, town, county and postcode
NA4TCP	Name, four address lines, town, county and postcode
A4P-B	Four address lines without business
A4TCP-B	Four address lines, town, county and postcode without business
PAF	All address elements

InformationHeaderResponse

Field Name	Type	Description
status	EnumRequestStatus	SUCCESS \| FAILURE
bulletins	ArrayOfBulletin

ArrayOfBulletin

Field Name	Type	Description
bulletin	Bulletin	List of Bulletin

Bulletin

Field Name	Type	Description
type	EnumBulletinType
code	String
text	String

MatchDetails

Field Name	Type	Description
streetMatchingLevel	EnumMatchDetailsMatchLevel	EXACT \| POSSIBLE \| PROBABLE
houseMatchingLevel	EnumMatchDetailsMatchLevel	EXACT \| POSSIBLE \| PROBABLE
bureauRefCat	EnumBureauRef	SAME_PERSON \| SAME_PERSON_ASSOCIATION \| UNASSOCIATED_SAME_FAMILY \| POTENTIAL_ALIAS \| ADDRESS_BASED
matchTo	EnumMatchTo	MAIN_APPLICANT \| ALIAS_OF_MAIN_APPLICANT \| ASSOCIATION_OF_MAIN_APPLICANT \| JOINT_APPLICATION \| ALIAS_OF_JOINT_APPLICATION \| ASSOCIATION_OF_JOINT_APPLICANT \| NO_MATCH
matchType	EnumMatchType	DATA_ON_FILE \| DATA_ON_INPUT \| NO_MATCH

NOC

Field Name	Type	Description
locationIndicator	EnumLocationCode	CURRENT \| PREVIOUS \| PRE_PREVIOUS
nocMessage	String	Detail of Correction

ProfileRequestCapture

Field Name	Type	Description
customerReference	String	User-supplied reference to help track the request
profileGuid	String	Profile to execute detailing which data sets to use
configurationId	Int	(Default: 1) Which configuration of the specified Profile to use
masterTransactionGuid	String	Reserved
requestData	ProfileRequestCaptureData	Input data for the request (e.g. the address to look-up)

ProfileRequestCaptureData

Field Name	Type	Description
address	IdmDataSearchAddress	Name and/or Address to search
telephone	List of IdmDataCaptureTelephone	List of telephone numbers to process
email	List of String	List of email addresses to process
ipAddress	List of String	Reserved for future use
bank	List of IdMDataCaptureBank	List of bank details to process
filters	IdmDataArrayFilter	Reserved for future use
options	IdmRequestOptions	Optional flags controlling the search
additionalData	IdmDataArrayAdditionalData	Additional information

ProfileRequestTrace

Field Name	Type	Description
customerReference	String	User-supplied reference to help track the request
profileGuid	String	Profile to execute detailing which data sets to use
configurationId	Int	(Default: 1) Which configuration of the specified Profile to use
masterTransactionGuid	String	Reserved
requestData	ProfileRequestTraceData	Input data for the request (e.g. the address to look-up)

ProfileRequestTraceData

Field Name	Type	Description
pickItemId	String	(Optional) Unique identifier for a particular person, business or property. Used by the Person Details, Business Details or Property Details profiles. It must be provided for any request for person, property, business or street details. It is ignored for an initial search request.
address	IdmDataTraceSearchAddress	(Optional) Name and/or Address to search. It must be provided for an initial search request. It is ignored for any request for person, property, business or street details.
telephone	IdmDataCaptureTelephone	(Optional) List with single telephone number to reverse-search.
email	String	(Optional) List with single email address to reverse-search.
filters	IdmDataArrayFilter	Reserved for future use
traceOptions	IdmDataTraceOptions	Optional flags controlling the search
additionalData
addressPlusTelData		Information detailing the Credit Address Plus item we want to check for a telephone number

Note that the pickItemId element is ignored by the Search profile, and the address, telephone & email elements are ignored by the Person Details, Business Details or Property Details profiles. In order to get a pickItemId, a call using the Search profile should be performed that will return (if appropriate) with results that include one or more of each of the following:

addressRecordId found in IdmDataTraceAddressPlus
personRecordId found in IdmDataTracePerson
businessRecordId found in IdmDataTraceBusiness

ProfileResponse

The ProfileResponse structure contains the results for an operation performed against a profile.

Field Name	Type	Description
profileHeader	ProfileResponseHeader	Contains the Profile information for the results of the query
profileResponses	ProfileResponseDetails	List of response data for the query

The ProfileResponseDetails structure contains the results for an operation performed against a product/data service in the Profile. It is possible to call multiple products in a single profile; in this case there will be multiple ProfileResponseDetails structures, one for each product.

ProfileResponseDetails

Field Name	Type	Description
transactionGuid	String	Unique transaction identifier for the component e.g. Search component
componentName	String	Name of the component
componentStatus	Enum	SUCCESS, FAILURE, INSUFFICIENTCRITERIA, NA
componentAction	String	Component Action
responseType	Enum	TRACE
notes	String	Notes accompanying the response
invoice	DataLicenceInvoice	List of charges for the query
captureResponse	CaptureResponse	Data from a component returning data e.g. SEARCH data, from an ExecuteCapture request
validateResponse	ValidateResponse	Data from a component returning data e.g. VALIDATE data, from an ExecuteProfile request
verifyResponse	VerifyResponse	(reserved)
traceResponse	TraceResponse	Data from a component returning data e.g. SEARCH data, from an ExecuteTrace request

ProfileResponseHeader

Field Name	Type	Description
profileGuid	UUID	Identifier for the profile
profileName	String	Name for the profile
transactionGuid	UUID	Identifier for the transaction (request/response)
transactionTimeStamp	dateTime	Time when this transaction took place
profileStatus	EnumStatus	FAILURE \| SUCCESS
remarks	String

SecurityHeader

Field Name	Type	Description
username	String	The username used to access the system including domain name (e.g. “user1@domainname.com”)
authenticationToken	String	Unique authentication token granting one time execution access to the services
ipAddress	String	(Optional) The IP Address of the requesting machine. Must be supplied if it was given in the AuthenticateUser request.

SecurityHeaderResponse

Field Name	Type	Description
authenticationToken	String	New authentication token to use for the next request
authenticationTime	XMLGregorianCalendar	Time when this new token was generated
sessionExpiryTime	XMLGregorianCalendar	Time when this new token becomes invalid

TraceResponse

The TraceResponse structure contains response records for a particular component/product. The data is held in a standard format across all products. The data structure is a flexible set of arrays designed to represent the data in a way that reflects the records in context of the search. The arrangement of the data will depend on the product in question. For more information on the layout of the response data please refer to the corresponding product documentation.

Field Name	Type	Description
resultStatus	Enum	NA, INSUFFICIENTCRITERIA, NONE, SINGLE, MULTIPLE, PICKLIST, VERIFY
recordsReturned	Int	Number individual of records returned e.g. number of people or businesses
moreData	Boolean	Indicates if more data on the server, which could be retrieved by re-submitting the request with a suitable offset
totalRecordCount	Int	Total records available from the query
totalPages	Int	Pagination - Total pages. (Not relevant for a web service request)
responseCount	Int	Number of groups of responses returned
response	TraceResponseData	Response data

TraceResponseData

Field Name	Type	Description
address	IdmDataTraceAddressPlus	List of Addresses
groupedRelatedData	IdmDataAdditionalDataGroup	List of related data

ValidateResponse

The ValidateResponse structure contains response records for a particular validation component/product. The data is held in a standard format across all products. The data structure is a flexible set of arrays designed to represent the data in a way that reflects the records in context of the validation request. The arrangement of the data will depend on the product in question. For more information on the layout of the response data please refer to the corresponding product documentation.

Field Name	Type	Description
resultStatus	Enum	NA, INSUFFICIENTCRITERIA, NONE, SINGLE, MULTIPLE, PICKLIST, VERIFY
recordsReturned	Int	Number individual of records returned e.g. number of people or businesses
responseCount	Int	Number of groups of responses returned
response	ValidateResponseData	Response data

ValidateResponseData

Field Name	Type	Description
input	String	The input value
status	EnumStatus	FAILURE \| SUCCESS
validityFlag	EnumValidityFlag	VALID \| INVALID \| UNKNOWN \| UNSUPPORTED
validationCodes	IdmDataArrayAdditionalData	List of validation codes

​CaptureResponse

​CaptureResponseData

​DataLicenceInvoice

​DataSetInvoice

​EnumGender

​ExecuteTraceResponse

​IdmAddrAutoTraceInfo

​IdmAddrLinkInfo

​IdmCCJInfo

​IdmDataAdditionalDataGroup

​IdmDataAdditionalDataListGroup

​IdmDataAddress

​IdmDataAddressBaseCoreInformation

​IdmDataAddressLinkInformation

​IdmDataAddressPlusTeldata

​IdmDataArrayAdditionalData

​IdmDataArrayFilter

​IdmDataBankruptcyInformation

​IdmDataBLPU

​IdMDataCaptureBank

​IdmDataCapturePerson

​IdmDataCaptureTelephone

​IdmDataClassification

​IdmDataCompanyInformation

​IdmDataDirectorInformation

​IdmDataGeoplusInformation

​IdmDataUtilitiesElectricityInformation

​IdmDataUtilitiesElectricityMeterPoint

​Electricity Meter Point Top-line Information

​IdmDataUtilitiesElectricityMeter

​IdmDataSearchUtilitiesInformation

​IdmDataUtilitiesGasInformation

​IdmDataUtilitiesGasMeterPoint

​IdmDataUtilitiesGasMeter

​IdmDataDate

​IdmDataDateWithRange

​IdmDataDateRange

​IdmDataDateOfBirthWithAge

​IdmDataSourcedDateWithConfidence

​Deceased information Example

​IdmDataArrayOfSourcedDates

​IdmDataDirectorInformation

​IdmDataExecutiveInformation

​IdmDataArrayOfExecutivesInformation

​IdmDataGeographic

​EnumGeoCodeStatus

​EnumGeoCodeLevel

​IdmDataRadius

​EnumRadiusUnit​

​IdmDataItem

​IdmDataLPI

​IdmDataPerson

​IdmDataPointer

​IdmDataPricePaid

​IdmDataPropertyInformation

​IdmDataResidencyPeriod

​IdmDataRmAlias

​IdmDataSourcedValueWithConfidence

​IdmDataArrayOfSourcedValues

​IdmDataAddress

​IdmDataStreetDescriptor

​IdmDataStreetInformation

​IdmDataTraceAddress

​IdmDataTracePreMoverInformation

​IdmDataTraceAddressPlus

​IdmDataTracePreMoverInformation

​IdmDataTraceBusiness

​IdmDataTraceBusinessFinancial

​IdmDataTraceOptions

​EnumTraceDataLevel

​EnumTraceRecencyYears

​EnumTraceRadiusRangeMiles - Contains the following integer options:

​IdmDataTracePerson

​EnumTracePersonSourceType

​IdmDataTraceSearchAddress

​IdmDataTraceSearchBusiness

​IdmDataTraceSearchPerson

​EnumGender

​IdmDataTraceDateWithRange

​IdmDataDateRange

CaptureResponse

CaptureResponseData

DataLicenceInvoice

DataSetInvoice

EnumGender

ExecuteTraceResponse

IdmAddrAutoTraceInfo

IdmAddrLinkInfo

IdmCCJInfo

IdmDataAdditionalDataGroup

IdmDataAdditionalDataListGroup

IdmDataAddress

IdmDataAddressBaseCoreInformation

IdmDataAddressLinkInformation

IdmDataAddressPlusTeldata

IdmDataArrayAdditionalData

IdmDataArrayFilter

IdmDataBankruptcyInformation

IdmDataBLPU

IdMDataCaptureBank

IdmDataCapturePerson

IdmDataCaptureTelephone

IdmDataClassification

IdmDataCompanyInformation

IdmDataDirectorInformation

IdmDataGeoplusInformation

IdmDataUtilitiesElectricityInformation

IdmDataUtilitiesElectricityMeterPoint

Electricity Meter Point Top-line Information

IdmDataUtilitiesElectricityMeter

IdmDataSearchUtilitiesInformation

IdmDataUtilitiesGasInformation

IdmDataUtilitiesGasMeterPoint

IdmDataUtilitiesGasMeter

IdmDataDate

IdmDataDateWithRange

IdmDataDateRange

IdmDataDateOfBirthWithAge

IdmDataSourcedDateWithConfidence

Deceased information Example

IdmDataArrayOfSourcedDates

IdmDataDirectorInformation

IdmDataExecutiveInformation

IdmDataArrayOfExecutivesInformation

IdmDataGeographic

EnumGeoCodeStatus

EnumGeoCodeLevel

IdmDataRadius

EnumRadiusUnit

IdmDataItem

IdmDataLPI

IdmDataPerson

IdmDataPointer

IdmDataPricePaid

IdmDataPropertyInformation

IdmDataResidencyPeriod

IdmDataRmAlias

IdmDataSourcedValueWithConfidence

IdmDataArrayOfSourcedValues

IdmDataAddress

IdmDataStreetDescriptor

IdmDataStreetInformation

IdmDataTraceAddress

IdmDataTracePreMoverInformation

IdmDataTraceAddressPlus

IdmDataTracePreMoverInformation

IdmDataTraceBusiness

IdmDataTraceBusinessFinancial

IdmDataTraceOptions

EnumTraceDataLevel

EnumTraceRecencyYears

EnumTraceRadiusRangeMiles - Contains the following integer options:

IdmDataTracePerson

EnumTracePersonSourceType

IdmDataTraceSearchAddress

IdmDataTraceSearchBusiness

IdmDataTraceSearchPerson

EnumGender

IdmDataTraceDateWithRange

IdmDataDateRange
